Cascades

Type IV CNG Cascade – Vertical Mounting 4992 L

Cascade Capacity 4992 L
Cascade Dimensions in mm (L x W x H) 4000 x 2100 x 2100
No. of Cylinders 32
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 925 KG
Cascade Weight Without Gas 3000 KG
Cascade Weight With Gas 3925 KG

Type IV CNG Cascade – Vertical Mounting 9360 L

Cascade Capacity 9360 L
Cascade Dimensions in mm (L x W x H) 6058 x 24380 x 2591
No. of Cylinders 60
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 1735 KG
Cascade Weight Without Gas 5800 KG
Cascade Weight With Gas 7535 KG

Type IV CNG Cascade – Vertical Mounting 18720 L

Cascade Capacity 18720 L
Cascade Dimensions in mm (L x W x H) 12029 x 2438 x 2591
No. of Cylinders 120
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 3470 KG
Cascade Weight Without Gas 12450 KG
Cascade Weight With Gas 15920 KG

Sizes indicate above are subjected to change/modification. Please confirm with us for your requirements.

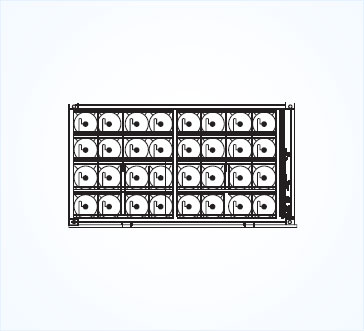

Type IV CNG Cascade – Horizontal Mounting 4992 L

Cascade Capacity 4992 L
Cascade Dimensions in mm (L x W x H) 4000 x 2100 x 2100
No. of Cylinders 32
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 925 KG
Cascade Weight Without Gas 3000 KG
Cascade Weight With Gas 3925 KG

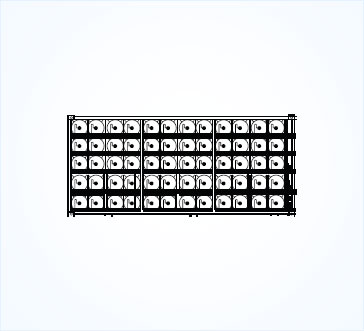

Type IV CNG Cascade – Horizontal Mounting 9360 L

Cascade Capacity 9360 L
Cascade Dimensions in mm (L x W x H) 5800 x 2100 x 2480
No. of Cylinders 60
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 1735 KG
Cascade Weight Without Gas 5800 KG
Cascade Weight With Gas 7530 KG

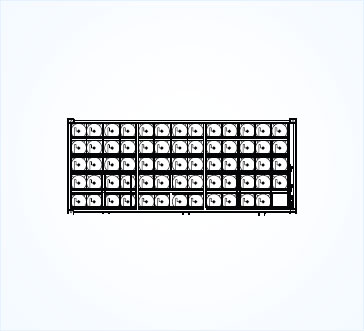

Type IV CNG Cascade – Horizontal Mounting 9984 L

Cascade Capacity 9984 L
Cascade Dimensions in mm (L x W x H) 6300 x 2100 x 2480
No. of Cylinders 64
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 1850 KG
Cascade Weight Without Gas 6200 KG
Cascade Weight With Gas 8050 KG

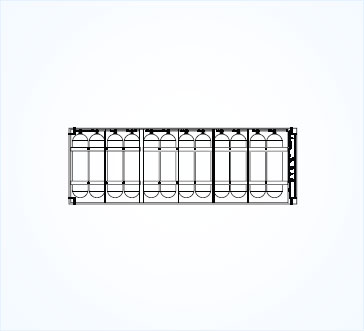

Type IV CNG Cascade – Vertical Mounting 18720 L

Cascade Capacity 18720 L
Cascade Dimensions in mm (L x W x H) 12192 x 2438 x 2591
No. of Cylinders 120
Cylinder Weight (kg) 45
Cylinder Capacity 156 L
Cascade Gas Carrying Capacity 3470 KG
Cascade Weight Without Gas 12450 KG
Cascade Weight With Gas 15920 KG

Sizes indicate above are subjected to change/modification. Please confirm with us for your requirements.
