Techpaulin Cross Laminated Films

An Introduction To Techpaulin

product1Time Technoplast Ltd., has revolutionized industry and excited customers with constant innovative products and now again it endeavours to redefine the plastic flexible segment with Techpaulin, a Multi layer multi axis Oriented X cross laminated film (MOX).
  • Cross Laminated

  • Multi Layer

  • Multi Axis Oriented

It comprises of biaxial oriented layers of plastic film bonded to one another in the machine operating direction, transverse and angular axis all together in 16 directions bonded by a cold roll technique.

Techpaulin has exceptional puncture resistant & barrier property, cutting-edge manufacturing technology delivers a superior product that does not peel off, shred, crack or cause leak easily. Extremely light weight but stronger. High UV property delivers better crack & weather resistance.

It is odourless, non toxic, recyclable, food grade and can be used for protecting, covering food grade items as well.


Conventional Tarpaulin
Made of woven polyethylene fabric laminated with poly film
Due to inherent product manufacturing process, product gets delaminated, disoriented very fast with loose shreds and ends
Lamination develops crack and tarpaulin shreds, poor weathering resistance
Inherent product structure makes it heavy
Stitching is done for side reinforcement, but has poor life as stitch wears off easily
Poor water resistance & poor barrier property
On exposure to sunlight conventional tarpaulin weakens rapidly developing cracks and shreds
Eyelets provided on reinforced sides weakens tarpaulin as it tears off easily
Surface does not allow excellent printing
Large variation in GSM / thickness
Other conventional Tarpaulin such as PVC Tarpaulin are heavy, not moisture resistant and difficult to handle
Develops bad odour when in contact with moisture. Toxic and non food grade
Post service waste generated is not eco-friendly
Multilayer multi axis Oriented X cross laminated film
Superior technology enables film to have excellent lamination and weathering resistance
Excellent weathering resistance. Does not shred or crack easily. Its 5 times more durable
As the film has got exceptional strength, it is much lighter in weight
Side reinforcement are done by ultrasonic welding technology, excellent weld property
Excellent water barrier property
Good weathering resistance even on exposure to sunlight
Strong and rigid eyelets are provided on side edges, does not weakens Techpaulin
Surface allows good printing and marking branding possible
Excellent technology allows very fine control & tolerance of GSM / thickness
Techpaulin is light weight and easy to handle
Odourless and non-toxic
Post service life, product is 100% recyclable, environmentally sustainable and eco-friendly

Unique features that give techpaulin the definitive edge

  • Plastic Fish Pond


    Techpaulin is an exceptionally strong co-extruded cross laminated film manufactured through an innovative process. The higher performance with a lighter gauge offers significant savings in material cost.

  • Tear / Puncture Resistant

    Special manufacturing process provides Techpaulin good tensile strength with strong balanced tear resistance in multi direction. Accidental puncture or tear does not propagate through the film.

  • 100% Waterproof

    Techpaulin has good water barrier property, moisture resistance and retains 100% strength even when wet. Staple / stitch free joints make it 100% waterproof. Techpaulin is rot resistant.

  • Easy to Use

    Techpaulin can be converted by various processes such as sealing / welding, gluing, laminating, cutting for range of industrial and consumer applications. Strong and tear resistant ends could be easily formed by cutting folding; welding and eyelets can be additionally provided for better handling. Being light weight, Techpaulin is easy to handle.

  • Durable

    Superior technology & exceptional properties makes Techpaulin a long lasting & a durable end product.

  • Weathering Resistant

    Techpaulin has high resistance to varying weather conditions. Even with sustained exposure to sunlight, wind, water, rain or snow, Techpaulin continues to have high resistance against crack, peeling, de-lamination, chipping, etc. Offers good weather resistance.

  • Chemical Resistant

    Inert to most chemicals including acid, alkalis, oil, stain, etc. Good barrier property allows usage in various applications requiring liquid and gas barrier properties.

  • UV Resistant

    Techpaulin has the ability to absorb UV radiation and dissipate the energy as low level heat, thus withstanding the pressure to crack or disintegrate under continuous exposure to sunlight.

An entire range of Agricultural and Industrial Applications


Drying of agriculture products such as

Fast and effective drying using Techpaulin

Tarpaulin Manufacturer

Drying of various agriculture produce

Silage and grain covers

Covers fresh harvest, protects freshness

Grain covers protect from rain, dew & sunlight

Fumigation barriers

Techpaulin Fumigation Cover

Poultry Curtains

Techpaulin – Poultry Curtains


Techpaulin – Vermibeds

Pond Liner

Techpaulin – Pond Liner

Pond Cover

Techpaulin as Floating Cover

Odour containment covers, Effective landfill covers

Techpaulin – Containment Cover


Techpaulin used as Cotton Cover

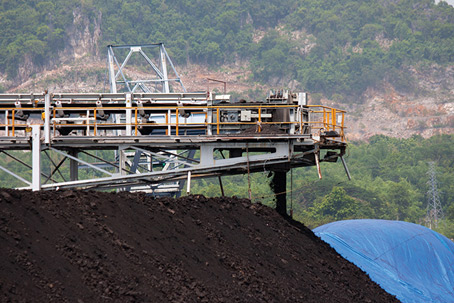

Techpaulin Coal Cover

Green House

Green House Cover

Green House Application

Industrial & Transportation Covers

Large cargo covers offers excellent protection

Truck Tarpaulins

Civil Engineering

Excellent waterproof barrier for Civil / Constructions

Other Innumerable Applications

Two Wheeler Covers

Market Shelters

Temporary Construction Covers

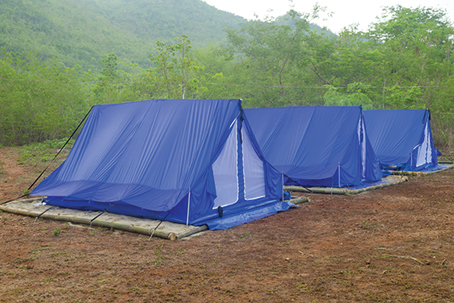

Temporary Tents

Temporary Tents

Finer Details that make a world of a difference

Techpaulin is reliable, matches high quality standards and finds application in an extensive range of agricultural and industrial applications.

Ultrasonic Welding

Unlike other material sheets, which are joined by stitching and stapling or any other conventional process, Techpaulin sheets are joined by a hi-tech process of ultrasonic welding.

  • Faster than conventional process
  • Clean and precise joints
  • Further guarantee that there is no leakage


Techpaulin provides reinforced eyelets at the corners and along the sides to form a strong attachment points for hold / grip & tying it.

  • Prevent tearing or streching
  • Extremely durable
  • Eyelets branded originality identified
  • Longer service life
  • Easier usage

Extensive Range

Techpaulin is available in all popular standard formats & sizes, ready to use carpet / sheet & roll form also available for customization.

  • GSM / Thickness

    Reinforced multi layer structure films ranges from ultra thin to heavy grade. Film is available in 70, 90, 120, 150, 200, 250, 300, 350 GSM.

  • Sizes

    Techpaulin offers a wide range of size and also long size which can be fabricated to a custom-made size as per customer’s need.

  • Colours

    A diverse range of colours.

Quality And Standards

Techpaulin is made from the finest material and constructed with the highest quality of workmanship with very latest state-of-the-art processing equipments. It is manufactured for performance exceeding IS Standard 14611-2016 (Multi layered cross laminated film).

Technical Values for Multi Layered Cross Laminated Sheets

Characteristics Requirements
XLN Extra Light LN Light MN Medium HN Heavy XHN Extra Heavy
Total mass per unit area, Min, g/m2 35-60 GSM 70-100 GSM 120-150 GSM 200-250 GSM 300 GSM
Tensile strength Kg/cm2 Kg/cm2 Kg/cm2 Kg/cm2 Kg/cm2
1. Longitudinal direction 250 250 250 250 250
2. Transverse direction 200 200 200 200 200
After ageing at 70+/- 1° for 168h, Min, Kg/cm2 30% decrease from the original
1. Longitudinal direction
2. Transverse direction
Elongation at break, Min % % % % %
1. Longitudinal direction 300 400 400 400 400
2. Transverse direction 250 300 300 300 300
Tear strength, Min g g g g g
1. Longitudinal direction 650 1200 2080 3200 4000
2. Transverse direction 450 900 1600 2800 3500
After ageing at 70+/- 1° for 168h, Min, Kg/cm2 30% decrease from the original
3. Longitudinal direction
4. Transverse direction
Dart impact strength, Min g
Average tensile strength & elongation at break after exposing to UV radiation and weathering, Min (kgf) 50% of the original strength

The above values may vary as per actual GSM of the sample. The information is provided in good faith. Time Technoplast Ltd., accepts no liability for misuse of product or information.
